RSeries

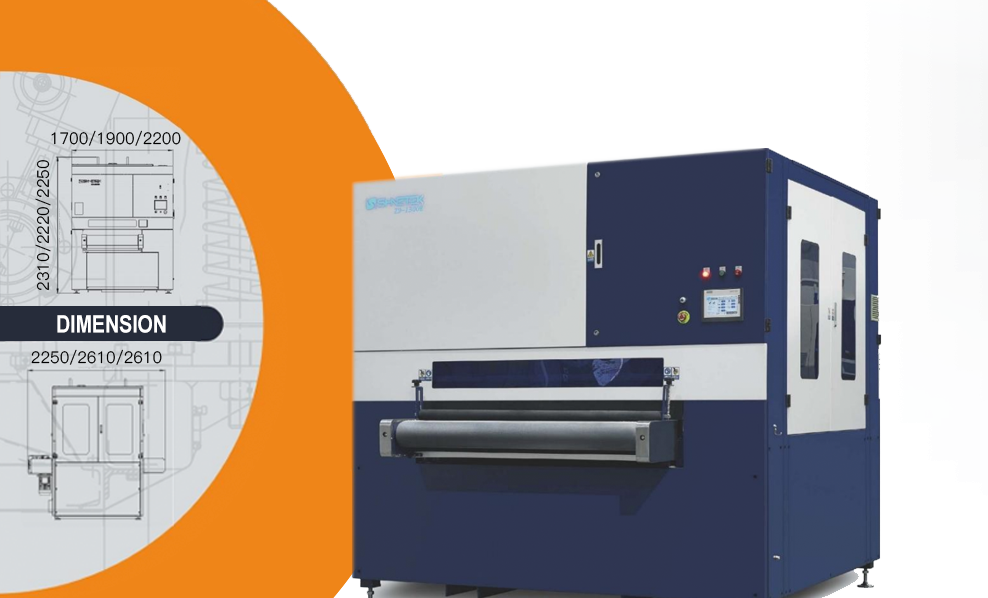

ROLLING BRUSH DEBURRING MACHINE

Deburring,edge rounding. Fits for processing workpiece with less holes and good flatness
  • Applicable MaterialCarbon Steel,Stainless Steel,Copper,Aluminum,etc.
  • Station CombinationR station,omni-direction rolling brush
  • Conveying And FixingBelt conveying,vacuum adsorption or magnetic force fixation.
  • Processing ResultRound and uniform contour,revolution pattern surface
Features
  • Remove soft burrs from contour edges
  • Uniform Rounding Of Inner And Outer Contours
  • Strong Adsorption Force,Suitable For Smaller Workpieces
  • Automatic compensation of grinding force
  • Memory Of Process Parameters
  • Automatic Cleaning Of Adsorption Chamber
  • Intelligent perception protection
  • Abrasive Replacement Reminding
Technical Parameters
Working Width 800mm/1000mm/1300mm
Working Thickness 1-80mm
Conveyor Speed 1-8m/min(frequency control)
Grinding Speed 9-18r/s(frequency control)
Revolution Speed 9-19r/min(frequency control)
Rated Voltage AC 380V/50Hz
MAX.POWER Vacuum 32KW/40KW/48KW(excluding dustcollector)
Magnetic 21KW/25KW/33KW(excluding dust collector)
Compressed Air 0.6-0.8Mpa
Weight 2200kg/3100kg/3700kg
Sample Parts Photo
