KSeries

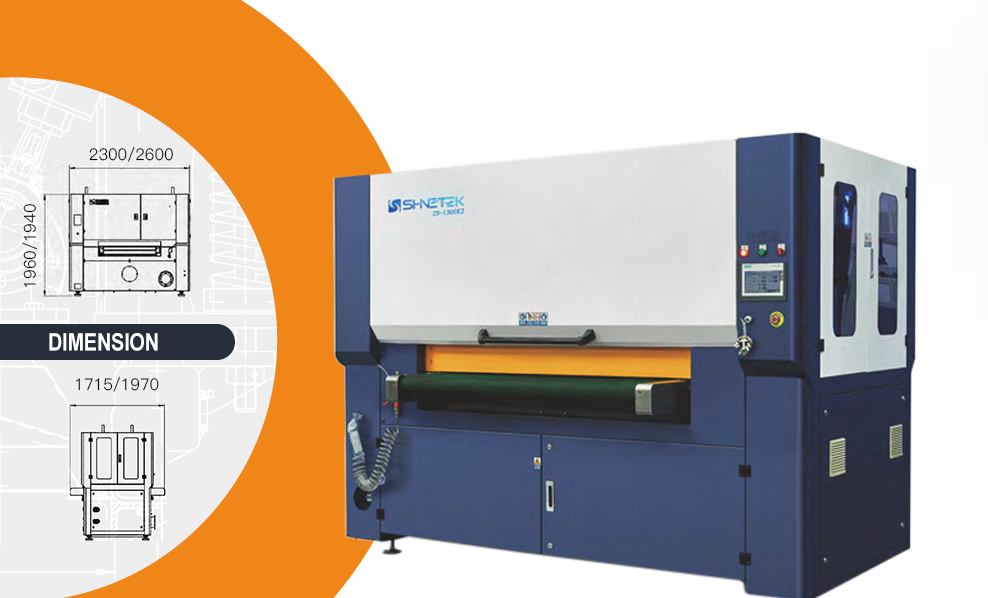

BLOCK-SHAPED SANDING BRUSH DEBURRING MACHINE

Deburring,edge rounding. Fits for workpiece which is not applicable for fi xation by vacuum or magnetic force
  • Applicable MaterialCarbon Steel,Stainless Steel,Copper,Aluminum,etc.
  • station combinationTwo K stations
  • Conveying And FixingBelt conveying,press rollers fixation
  • Processing ResultRound and smooth contour, long straight line pattern(slight)
Features
  • Remove burrs and sharp edges from the workpiece
  • Double sanding brush mechanism,higher efficient rounding of inner and outer contour
  • Memory of process parameters
  • Intelligent maintenance reminding
  • Automatic compensation of abrasive (optional)
  • Abrasive replacement reminding (optional)
Technical Parameters
Working Width 1000mm/1300mm
Working Thickness 0.5-100mm
Conveyor Speed 0.8-4m/min(frequency control)
Sanding Brush Speed 7.5m/s
Rated Voltage AC 380V/50Hz
MAX.POWER No Magnetic 11.5KW/14.8KW(excluding dust collector)
Magnetic 11.8KW/15.1KW(excluding dust collector)
Compressed Air 0.6-0.8Mpa
Weight 2200kg/3000kg
Sample Parts Photo
