DSeries

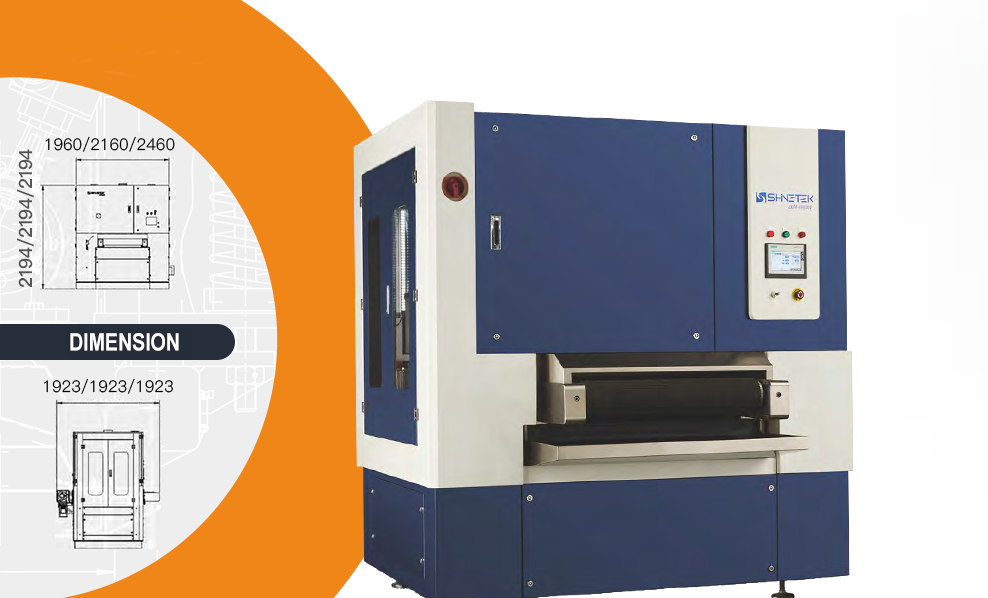

MULTI-FUNCTION DISC BRUSH DEBURRING AND POLIHING MACHINE

Surface deburring and polihing
  • Applicable MaterialCarbon Steel, Stainless Steel,Copper,Aluminum,etc.
  • Station CombinationRotary D-station structure,can run in dry or wet mode
  • Conveying And FixingBelt conveying,press roller or vacuum fixation
  • Processing ResultWorkpiece contours deburring,polishing,uniform pattern
Features
  • Patent design structure, multi-purpose machine
  • Multiple abrasives available, meet different demandson deburring, polishing,etc.
  • Uniform grinding of all disc brushes of the station,improve service life of consumables
  • Patent disc adjusting control system, secure consistent processing effect
  • Memory Of Process Parameters
  • Intelligent perception protection
Technical Parameters
Working Width 800mm/1000mm/1300mm
Working Thickness 1-40mm
ConveyorSpeed 1-4m/min(frequency control)
Disc rotation speed 3000-6000r/min
Revolution Speed 200-400mm/s
MAX.POWER 30KW(including high pressure blower)
Rated Voltage AC 380V/50Hz
Compressed Air 0.6-0.8Mpa
Weight 2500kg/3000kg/3500kg
Sample Parts Photo
